| AIO 2 SONIC WEATHER STATION |
FEATURES
• All-In-One Measurement of Temperature, Relative Humidity, Wind Speed, Wind Direction, and Barometric Pressure
• Integrated Sonimometer™ Wind Sensor
• Automatic Wind Direction Alignment to Magnetic or True North
• Rugged, Reliable, Quick to Deploy
• All Metal Construction
• Weather Protected Multi-Sensor Design
• No Moving Parts
• Low Power Consumption
• Digital Output
• Proven Field-Use History

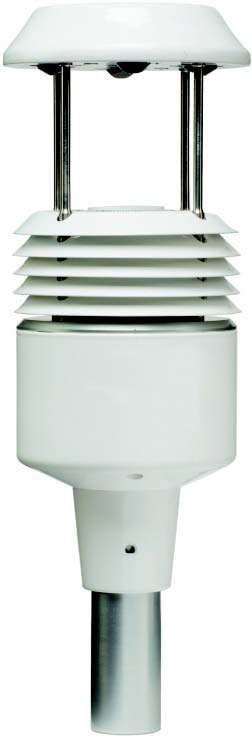

The AIO 2 All in One Weather Sensor is the next-generation weather instrument that
measures temperature, relative humidity, wind speed, wind direction, and barometric pressure in a single compact, rugged unit.
Manufactured by Met One Instruments, Inc. and MADE IN THE USA. Please contact sales@metone.com.
This AIO 2 integrates a unique low-power sonic anemometer, the Sonimometer™, with a
multi-element temperature sensor, fast-response capacitive relative humidity sensor,
state-of-the-art barometric pressure sensor, and an internal flux-gate compass for
automatic alignment of wind direction to magnetic north for quick deployment (true/magnetic
North offset is adjustable by the user through software command). The result is a professional
grade all-in-one weather station designed for reliability, longevity, and ease of installation.
The small footprint and power efficiency of the AIO 2 make it ideal for remote regions, urban
environments, air quality networks, construction/remediation sites, and other network
applications
Designed for maximum portability and utility, the AIO 2 is uniquely applicable for rapid deployment
and use by one person under all conditions. The unit may be mounted on a tripod or
vehicle mast.
Data output is a serial, digital message that can be interfaced to most data logging
systems. Software is provided for user interface. Options are offered for wireless
communication.
The AIO 2 All in One Weather Sensor is supported by a number of accessories,
including carrying cases, a compact quick deploy lightweight tripod, and external
power options. Additional complete and custom packages are available for HAZMAT and air
quality applications.
SPECIFICATIONS
PERFORMANCE
Wind Speed
Range 0 to 70 m/sec (0 to 157 mph)
Accuracy ±0.3 m/s or ±3% of reading
Resolution 0.1 m/s
Wind Direction
Range 0° to 360°
Accuracy ±3° @ wind speed > 2.2 m/s
Resolution 1.0°
Temperature
Range -50°C to +60°C
(-58°F to +140°F)
Accuracy ±0.3°C 2
Resolution 0.1°C
Relative Humidity
Range 0 to 100%
Accuracy ±2%
Resolution 1.0%
Pressure
Range 600 to 1100 hPa
Accuracy ±0.50 hPa 3
Resolution 0.1 hPa
Precipitation (Optional)
External Rain Gauge Input
Resolution 0.25 mm or 0.01″, user selectable
ELECTRICAL
Measurement Rate Output: 1 Hz
Signal Output RS-232C, RS-485, SDI-12 Power Requirements 8 to 36 VDC;
30 mA nominal @ +12 VDC
ENVIRONMENTAL
Temperature -50°C to +60°C
(-58°F to +140°F)
Humidity 0 to 100%
PHYSICAL
Construction Aluminum and stainless steel
Weight 1.3 kg (2.9 lbs)
Size 266 mm (10.5 in) high by 113 mm (4.5 in) dia.
Mounting Mounting and alignment adapter vertical ¾-inch pipe
Color Gloss white powder coat
SHIPPING
Weight 2.3 kg (5.0 lbs)
Notes:
1. Whichever is greater
2. Over the range of -20° to 60°C. ±0.5° from -50° to -20°C.
3. At constant temperature (25°C)
STANDARD ACCESSORIES
• 10523 ¾” IPS Pipe Mount
• 10106 Universal Mounting Arm
• 102455 WeatherView Software
• 10600 Digital Sensor Interface (Provides Wiring Terminals, USB, 12Vdc Supply)
CABLE
• 10624 Sensor Cable (Separate Item)
OPTIONAL FEATURES AND ACCESSORIES
• Support tripod
• Carrying case
• External battery
• Analog converter
• 1″ Pipe Mount (P/N 10489)
Met One Instruments, Inc.
1600 Washington Blvd. Grants Pass, OR 97526
Phone: 541-471-7111
FAX: 541-471-7116
E-Mail: sales@metone.com
